Data Feature overview

    The App Builder Data features let users add, edit and use external data source in the application they are developing. By default, the App Builder comes with a mock Northwind data source which users can use for reference. Below you can find different ways to set up Rest API data sources:

    • By using a Rest API URL with the data source.
    • By using a Swagger URL or file definition (json/yaml).
    Warning

    Using a JSON type data source with file upload is now deprecated

    If you have uploaded data sources in your application prior the removal of the 'Upload .json file' functionality, you will be notified that the request "Failed to retrieve from 'X' and is now switching to mock data response".

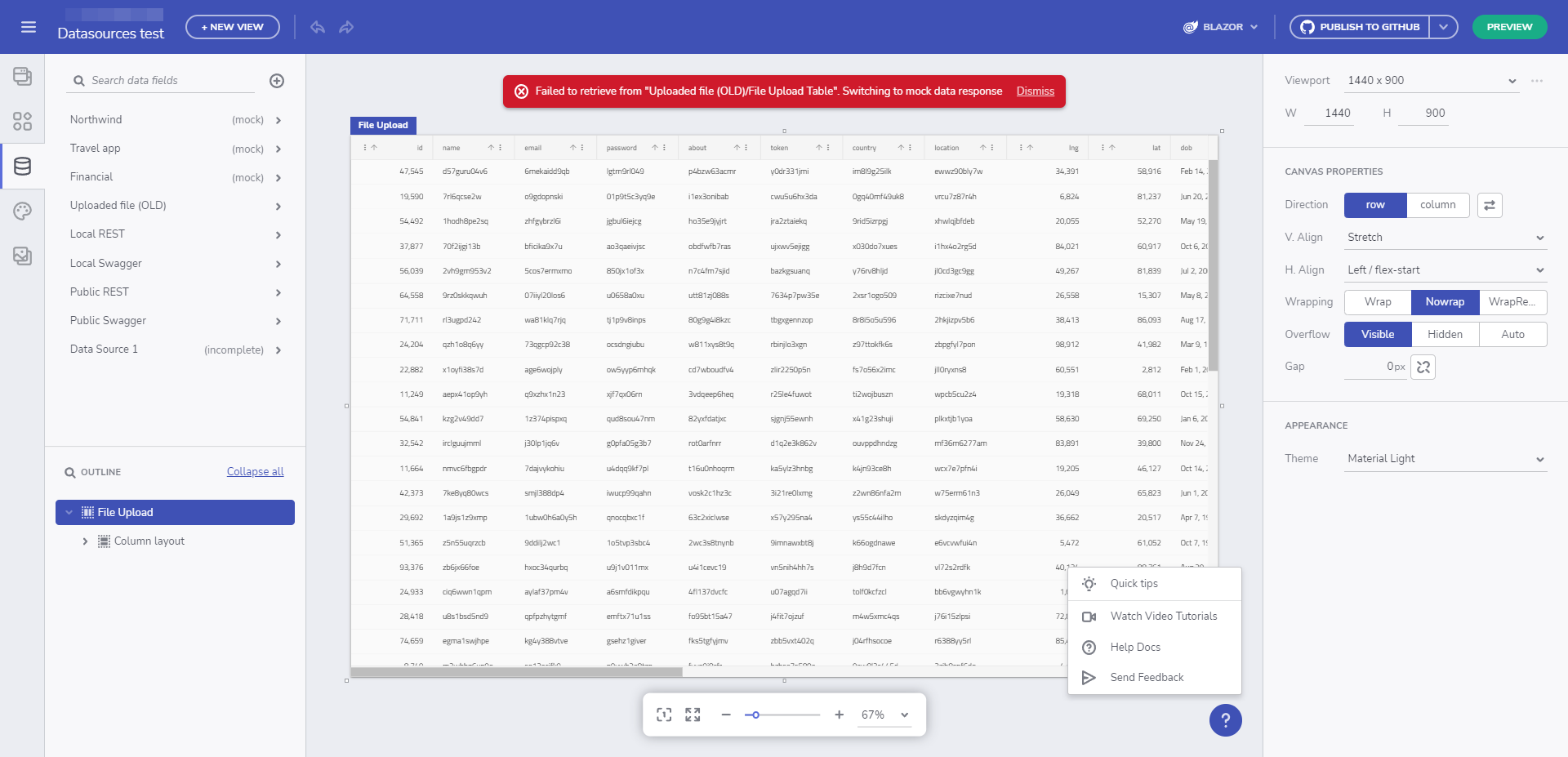

    Failed to retrieve data from previously uploaded file

    All added data sources are placed in the data toolbox and users can expand/collapse each data source in order to see the included tables and selected fields.

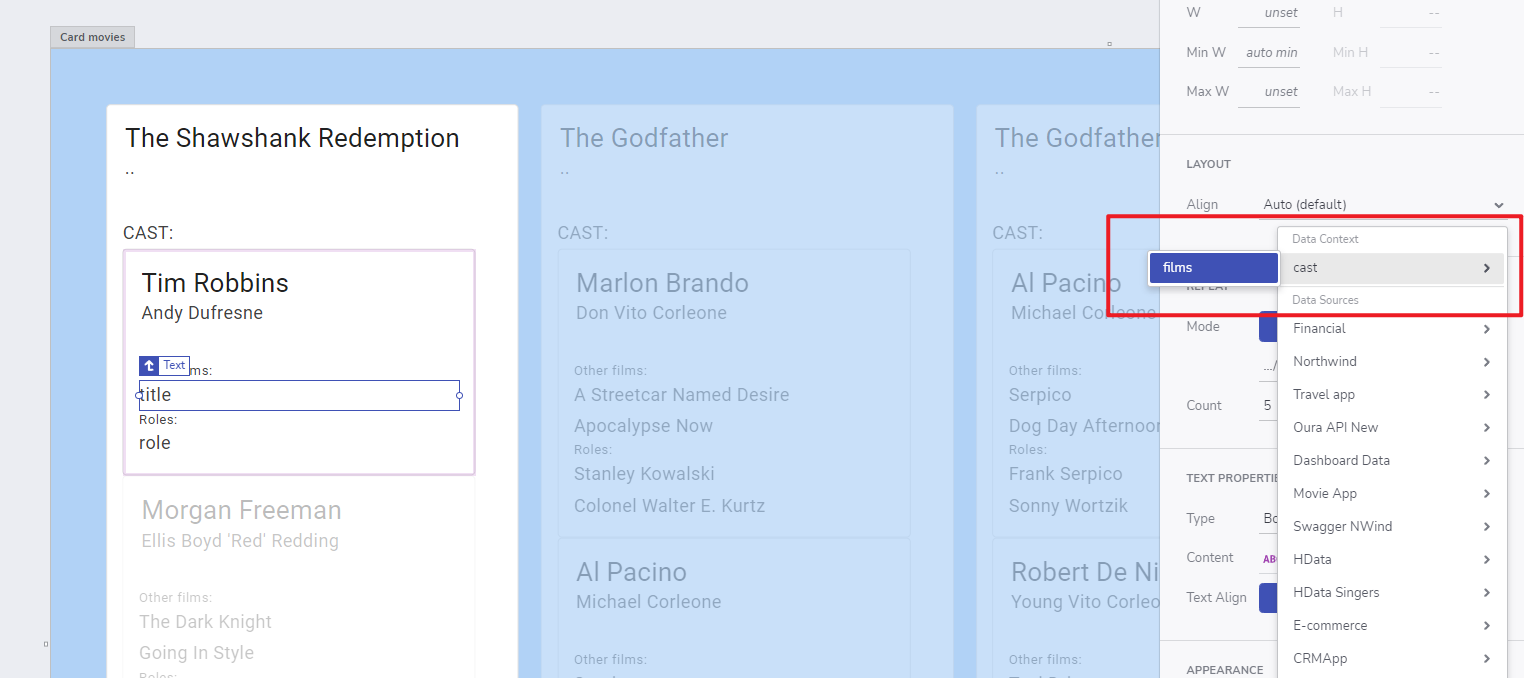

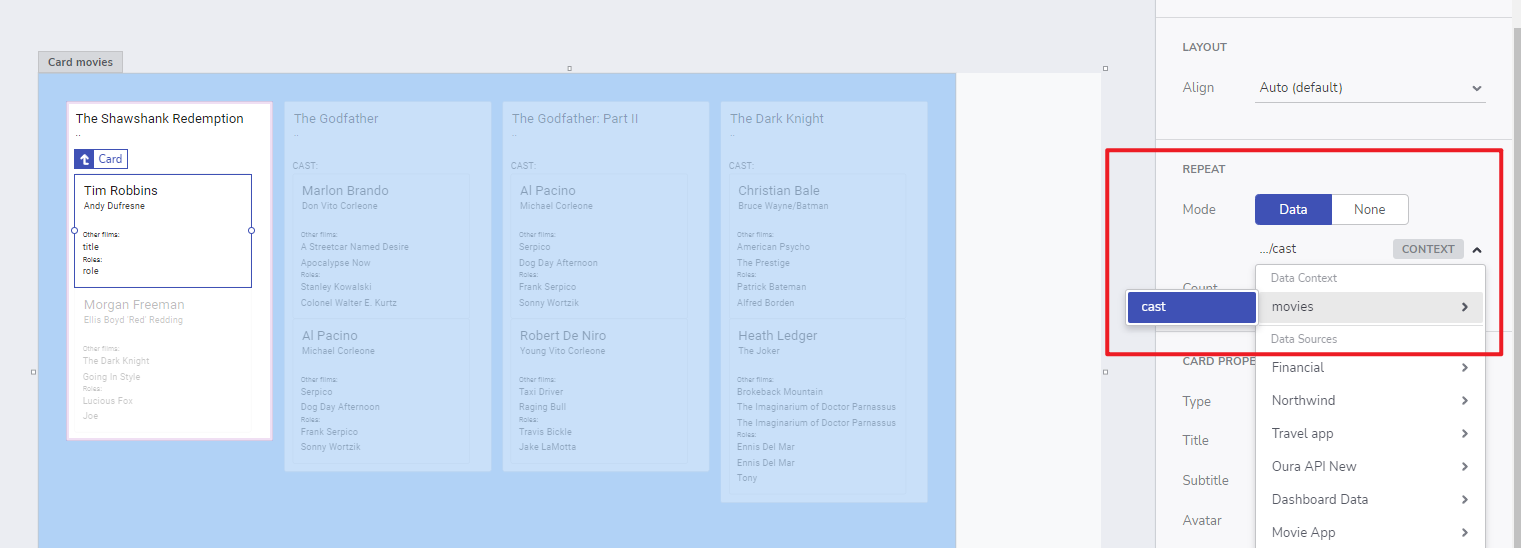

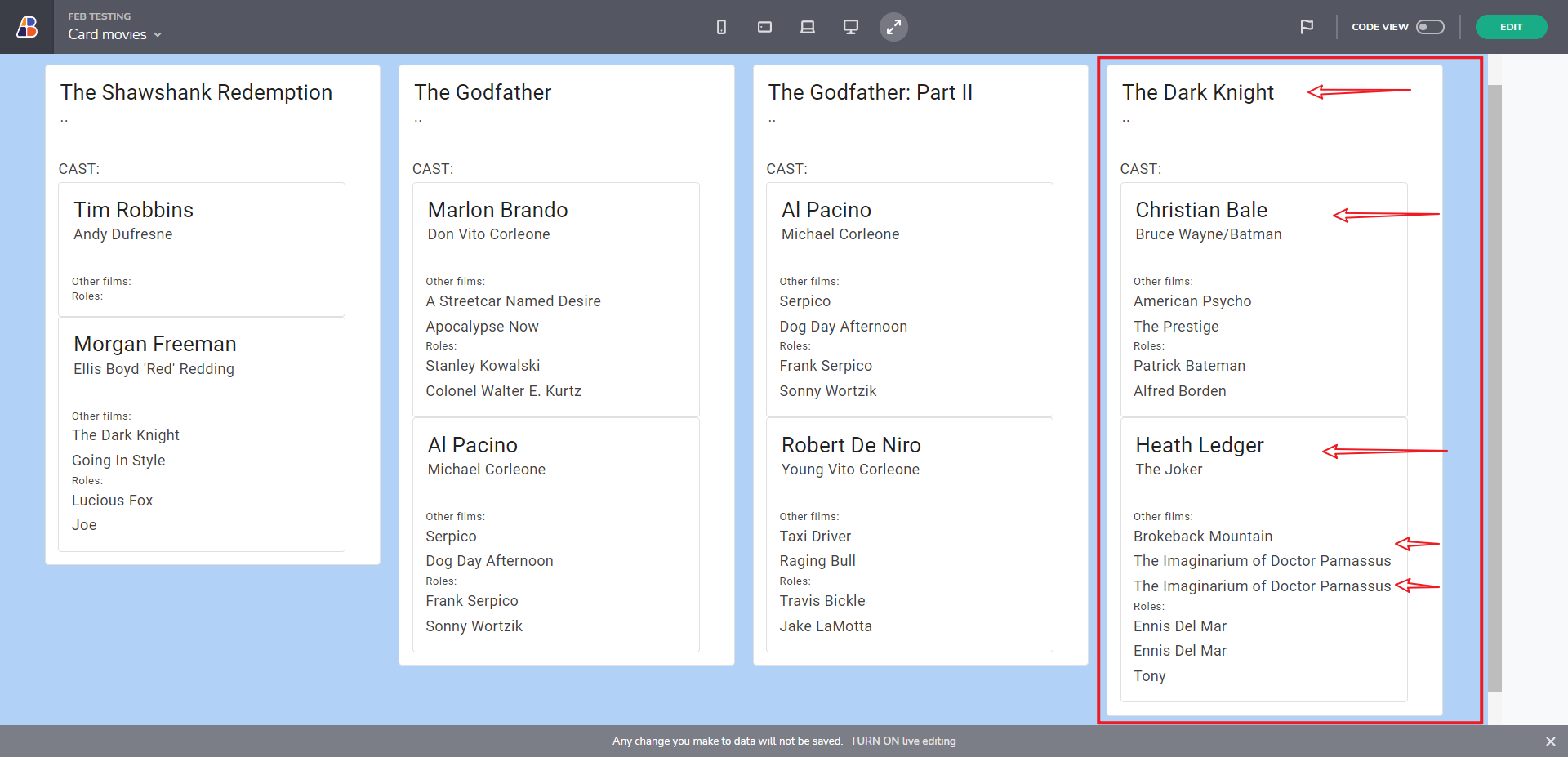

    The App Builder also supports nested collection inside a response object. You can now bring in APIs that wrap the return collection in a metadata object (e.g. oData and others) and use the nested collection for data-binding components such as the Grid or to perform repeat operations based on it.

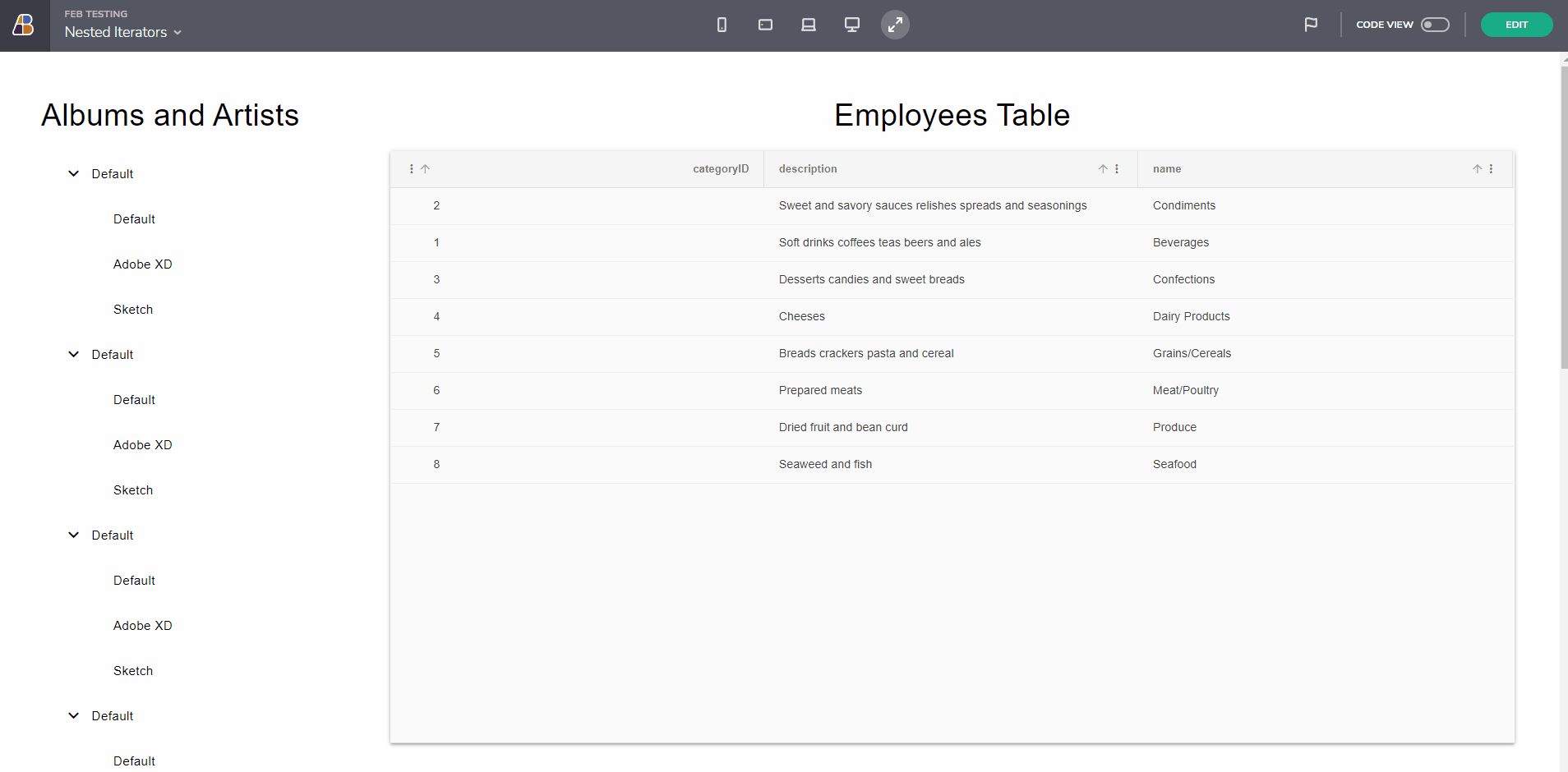

    Nested Collection Demo

    Adding a data source

    The App Builder Data feature enables users to link to external publicly available source(Rest API)

    Note

    Data sources added to the App Builder are restricted to the user space and are visible only to the user that added them, or to their team space (when the teams feature is available).

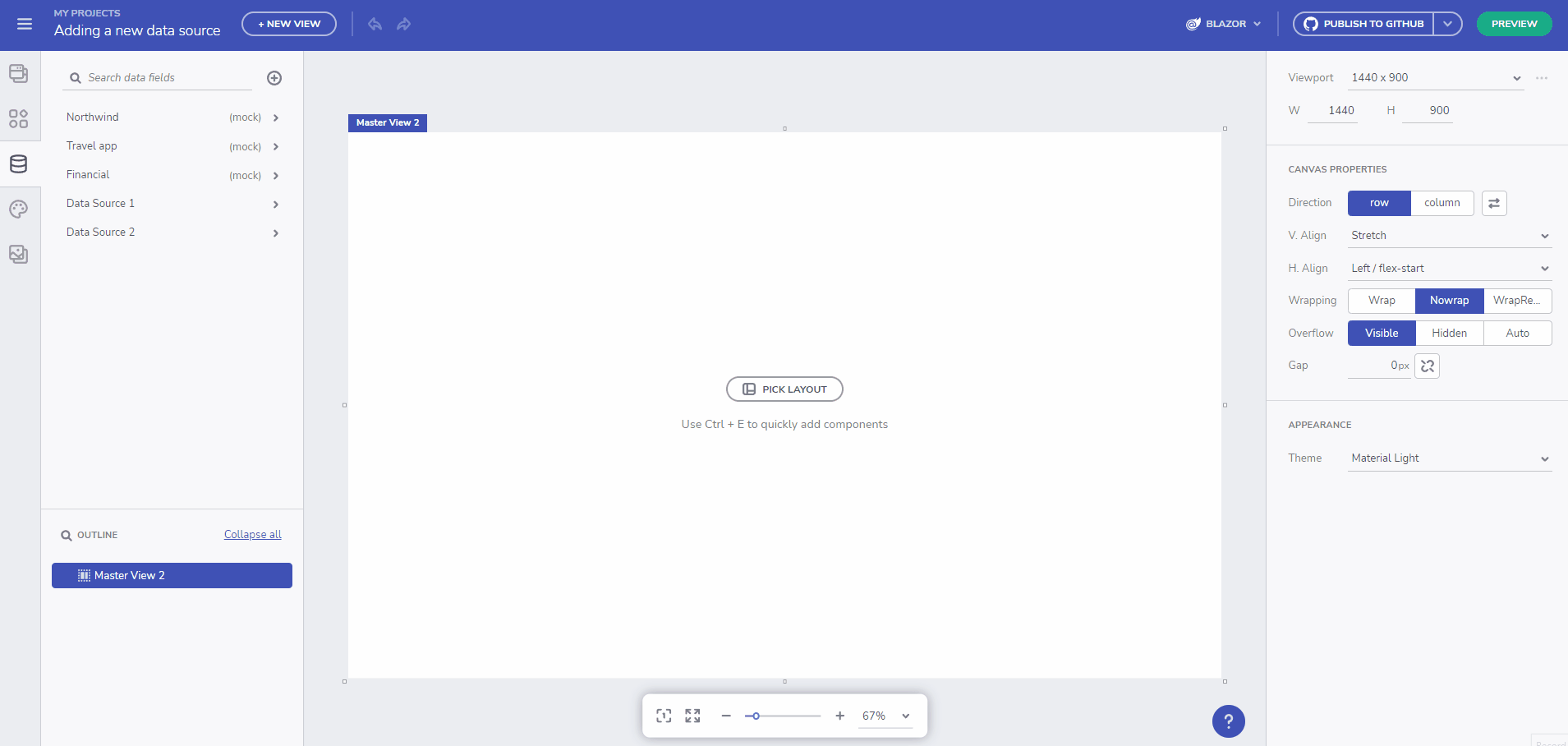

    Adding data source from a URL

    Adding a Swagger data source

    The power of Swagger tools starts with the OpenAPI Specification — the industry standard for RESTful API design.

    You can now specify a Swagger definition (by providing a file URL or simply upload it) and an intuitive design will help you pick an endpoint an data fields, with ease. You can later on bind this data source to a component like Grid, Card, List or any other bindable component.

    Check out the full article on how to add a Swagger definition and bind your data to it.

    Swagger demo

    Using data source from local network sources

    You can now make requests to a localhost or private networks. This includes regular REST endpoints and Swagger endpoints.

    Local network sources usage

    Troubleshooting

    If you get an error dialog while using a private network this section can help resolve the problem. If the problems aren't resolved, follow the report and issue or send us feedback section.

    Request failed error dialog

    Due to the essence of working with local networks this type of error requires additional work in order to identify if the local/private service fails due to CORS problems (Cross-Origin Requests) or else.

    If Request failed dialog appears while you add a local service, open the dev tools of your browser (Hit F12) and check the console/network tab for errors. The most probable reason would be CORS restrictions.

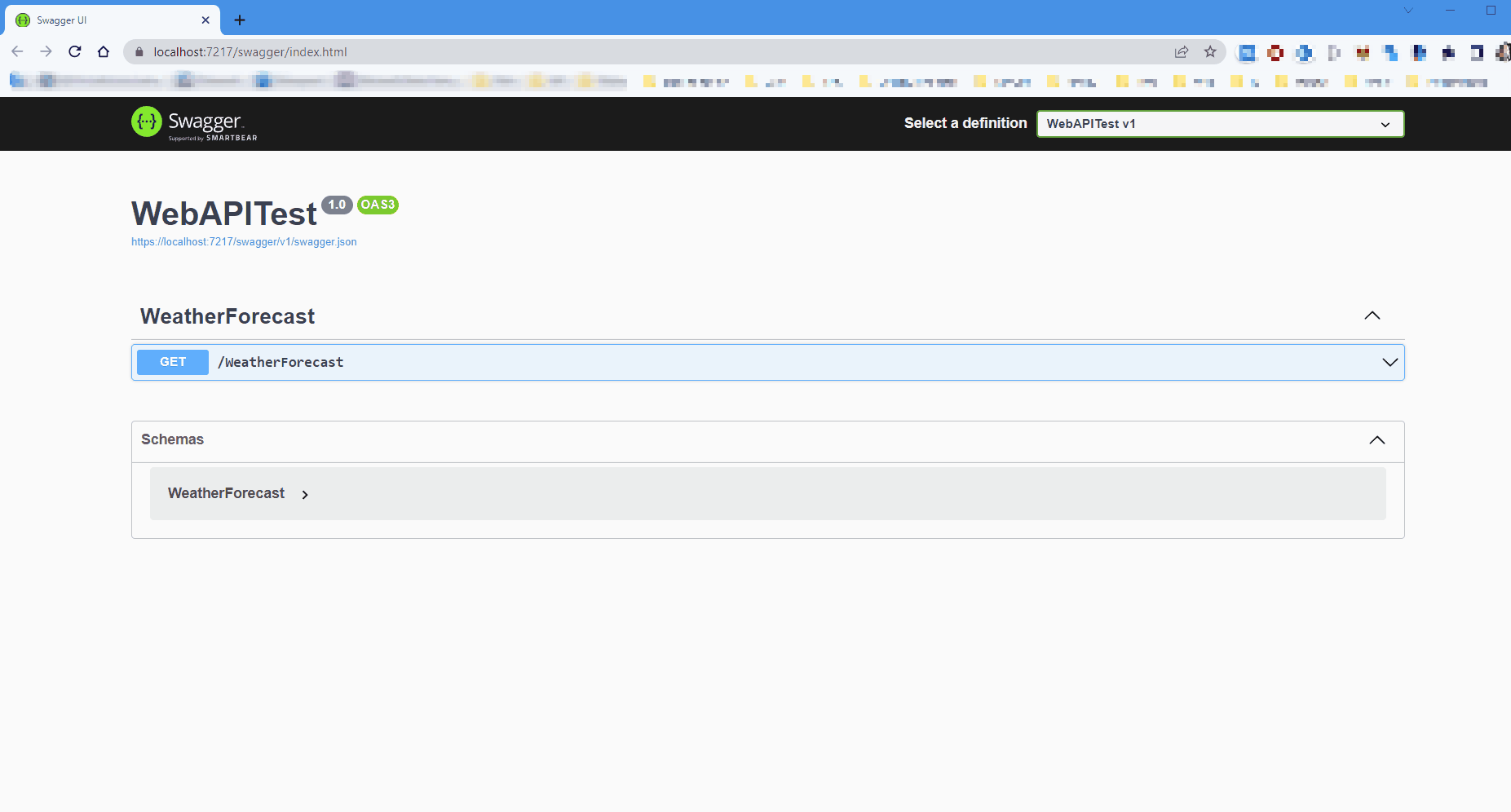

    Request failed error

    Based on the local service configuration, there are some ways to overcome the Cross-Origin Requests problem that we discuss with more details below.

    Enable Cross-Origin Requests (CORS) in ASP.NET Core

    This article shows how to enable CORS in an ASP.NET Core app. You can ensure that the Web App builder adds CORS policy that Allows all or specific origins:

    var builder = WebApplication.CreateBuilder(args);
    var MyAllowSpecificOrigins = "_myAllowSpecificOrigins";

    // Add services to the container.
    builder.Services.AddControllers();

    builder.Services.AddEndpointsApiExplorer();
    builder.Services.AddSwaggerGen();
    builder.Services.AddCors(options =>
    {
        options.AddPolicy(name: MyAllowSpecificOrigins,
                          policy =>
                          {
                              policy.AllowAnyOrigin();
                          });
    });


    Set .UseCors() right after the app initialization.

    var app = builder.Build();

    app.UseCors(MyAllowSpecificOrigins);

    // Configure the HTTP request pipeline.
    if (app.Environment.IsDevelopment())
    {
        app.UseSwagger();
        app.UseSwaggerUI();
    }


    Enable CORS Using IIS Manager, web.config or C#

    Follow the steps below in order to enable access to your internally hosted data source using IIS.

    1. Open IIS manager on your server or on your local PC.
    2. Navigate to the website you need to edit the response headers for.

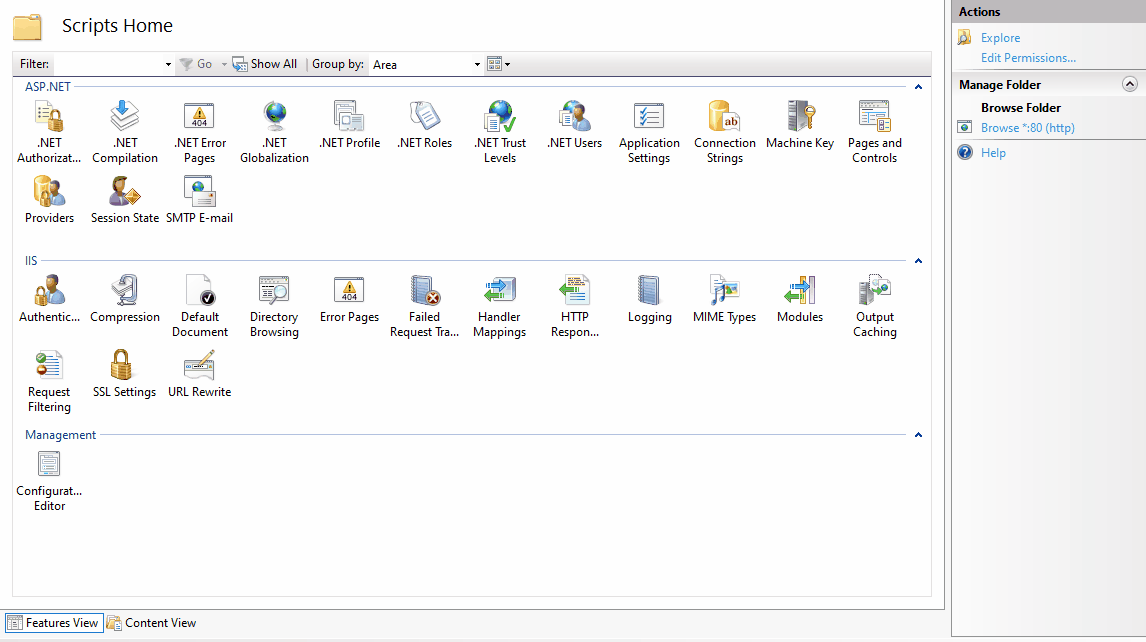

    3. From the list or Icons related to the site you are editing, select "HTTP Response Headers" from the middle-pane, as shown in the image below
    4. Double click "HTTP Repsonse Header"
    5. Now, click "Add" from right hand side pane
    6. A dialog box will open. For name enter "Access-Control-Allow-Origin" and for Value enter an asterisk (*).
    7. Click Ok, you are done.

    IIS Configuration

    You can simply enable CORS by adding configuration in your asp.net website's web.config file or adding some code in your global.asax file. Detailed information here.

    Selecting data fields and changing fields type

    When a data source has been added, users can connect a particular data field to a component section. In order for this to be done, first select the component (a card component is used in the example below), then change Repeat mode to Data and scroll down the menu to locate and select the table from the Data Source that you want to connect to. Finally, connect the card section with the selected table field.

    Selecting data fields

    Changing a data source table field type

    Connecting Data Source to a repeated component

    When a data source has been added, users can connect a particular data field to a component section. In order for this to be done, first select the component (a card component is used in the example below), then change Repeat mode to Data and scroll down the menu to locate and select the table from the Data Source that you want to connect to. Finally, connect the card section with the selected table field.

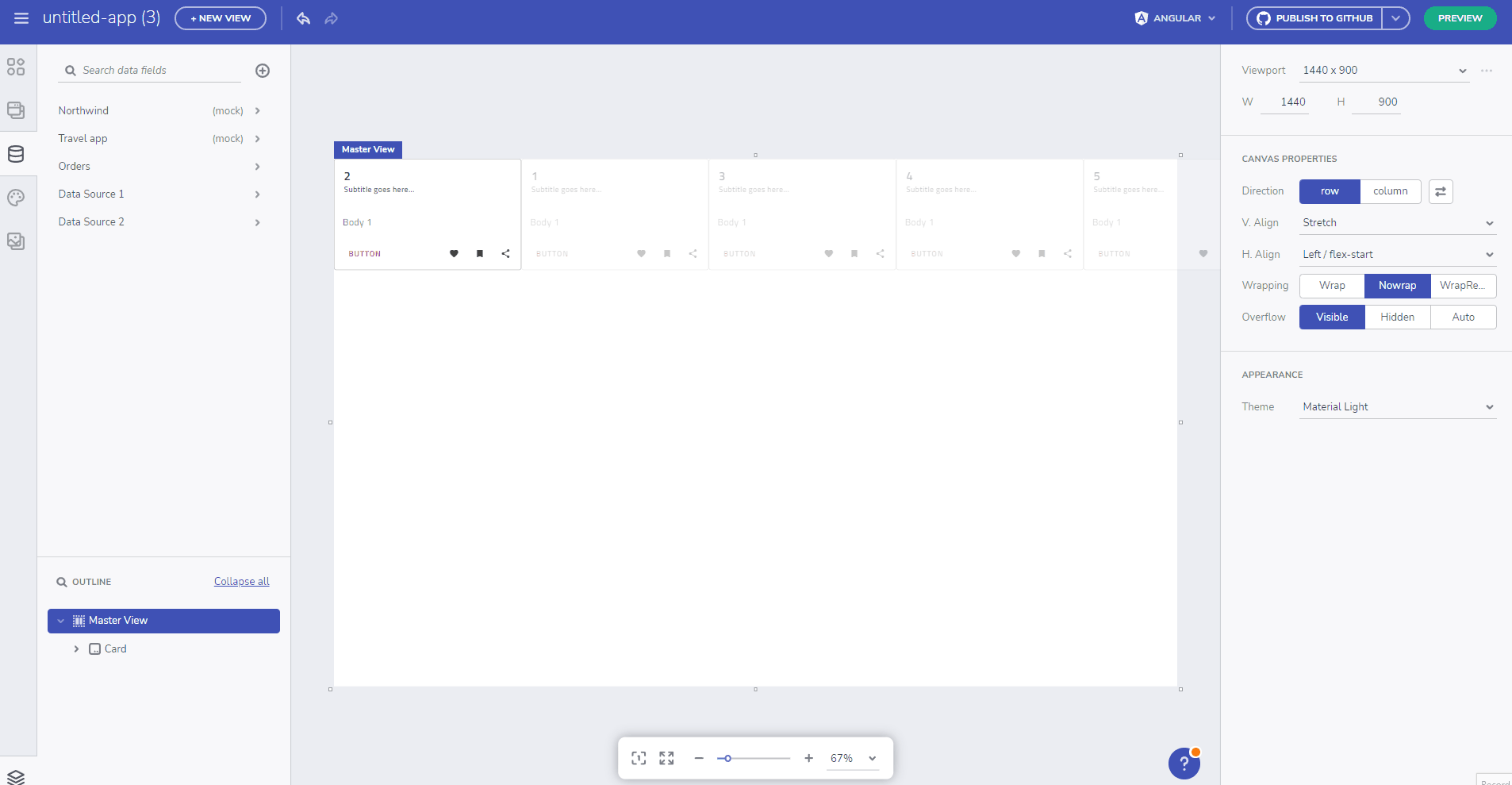

    Connect a data source table field to a component section

    Known issues and limitations

    Unable to infer schema from data

    This error message will be show when the size of the parsed table schema of the datasource is too big (over 5mb). It can be triggered when:

    • Adding a regular REST endpoint.
    • When checking endpoints of a swagger datasource.
    • Or when datasource is updated.

    Keep in mind this is not a restriction on the data, for example it can be with more than 50MB of rows, although as long as the *schema (note below) can be represented in under 5MB, the App Builder will load it.

    Note

    Schema: The shape of the data for all the tables of the datasource

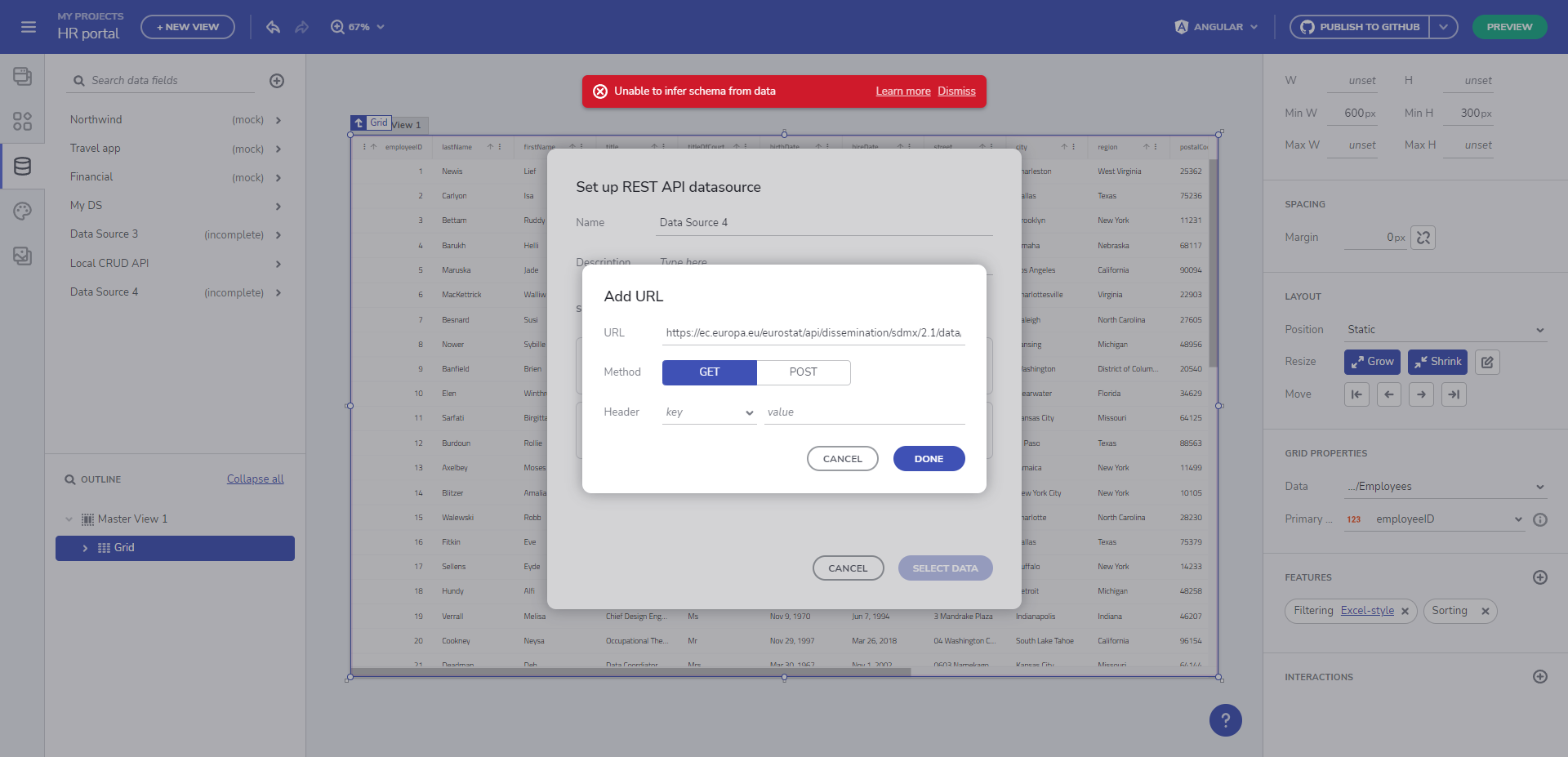

    Unable to infer schema from data
