Displaying Charts in the (UltraSpreadsheet) Control

Purpose

This topic explains how to display a chart in the Spreadsheet.

Required background

The following table lists the topics required as a prerequisite to understanding this topic.

Topic Purpose

In this section you will find information that will help you to better understand the object model and the functionalities of the Infragistics Excel Engine .

This topic explains in details the features of the UltraSpreadsheet control from developer perspective.

This topic provides an overview of the visual elements of the UltraSpreadsheet control.

Introduction

Using ChartAdapter you can display the charts in the spreadsheet.The spreadsheet chart adapters creates and initializes chart elements for the spreadsheet based on a Infragistics.Documents.Excel.WorksheetChart instance.

In order to add a WorksheetChart to a worksheet, you must use the AddChart method of the worksheet’s Shapes collection.You can find more detail of adding charts in Excel

Here are the steps by step description :

  1. Add the SpreadsheetChartAdapter assembly reference to your project

  2. Create an instance of a SpreadsheetChartAdapter class

  3. Assign the chart adapter instance created in step 2 to the Spreadsheet’s Chart Adapter property

  4. Run your app and load a worksheet containing a chart

Adding Charts to the UltraSpreadsheet

There are over 35 chart types supported by the Spreadsheet ChartAdapters including, Line, Area, Column, and Doughnut. See the full list here:

  • Column Charts

    • Clustered column

    • Stacked column

    • 100% stacked column

  • Line Charts

    • Line

    • Line with Markers

    • Stacked line

    • Stacked line with markers

    • 100% stacked line

    • 100% stacked line with markers

  • Pie Charts

  • Doughnut Charts

  • Bar Charts

    • Clustered bar

    • Stacked bar

    • 100% stacked bar

    • Area Charts

    • Area

    • Stacked area

    • 100% stacked area

  • XY (Scatter) and Bubble Charts

    • Scatter (with Marker only)

    • Scatter with smooth lines

    • Scatter with smooth lines and markers

    • Scatter with straight lines

    • Scatter with straight lines and markers

    • Bubble (without effects)

  • Stock Charts

    • High-low-close

    • Open-high-low-close

    • Volume-high-low-close

    • Volume-open-high-low-close

  • Radar Charts

    • Radar without markers

    • Radar with markers

    • Filled Radar

  • Combo Charts

    • Column and line chart sharing xAxis

    • Column and line chart and 2nd xAxis

    • Staked Area and Column

    • Custom Combination

Preview

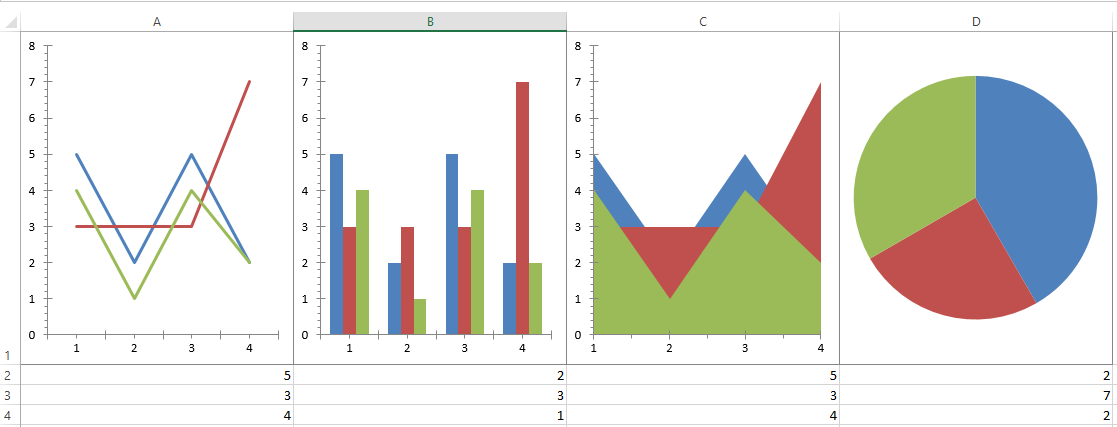

The following is a preview of the final result of a UltraSpreadsheet with a Line, Column, Area and Pie chart displayed, along with the data used for each using the code snippets below:


Code Snippets

Following is the code that implements this example.

In C#:

Spreadsheet1 = new UltraSpreadsheet();
Spreadsheet1.ChartAdapter = new SpreadsheetChartAdapter();

//Get the cells for the four charts that will placed in the Worksheet.
WorksheetCell cell1 = sheet.GetCell("A1");
WorksheetCell cell2 = sheet.GetCell("B1");
WorksheetCell cell3 = sheet.GetCell("C1");
WorksheetCell cell4 = sheet.GetCell("D1");

////Create Line chart.
WorksheetChart chart1 = sheet.Shapes.AddChart(Infragistics.Documents.Excel.Charts.ChartType.Line, cell1, new Point(0, 0), cell1, new Point(100, 100));
chart1.SetSourceData("A2:D4", true);

//Create Column chart.
WorksheetChart chart2 = sheet.Shapes.AddChart(Infragistics.Documents.Excel.Charts.ChartType.ColumnClustered, cell2, new Point(0, 0), cell2, new Point(100, 100));
chart2.SetSourceData("A2:D4", true);

//Create Area chart.
WorksheetChart chart3 = sheet.Shapes.AddChart(Infragistics.Documents.Excel.Charts.ChartType.Area, cell3, new Point(0, 0), cell3, new Point(100, 100));
chart3.SetSourceData("A2:D4", true);

//Create Pie chart.
WorksheetChart chart4 = sheet.Shapes.AddChart(Infragistics.Documents.Excel.Charts.ChartType.Pie, cell4, new Point(0, 0), cell4, new Point(100, 100));
chart4.SetSourceData("A2:D4", false);

this.Spreadsheet1.Workbook = workbook;

In Visual Basic:

Dim spreadsheet As UltraSpreadsheet = New UltraSpreadsheet()
spreadsheet1.ChartAdapter = New SpreadsheetChartAdapter()

' Get the cells for the four charts that will placed in the Worksheet.
Dim cell1 As WorksheetCell = sheet.GetCell("A1")
Dim cell2 As WorksheetCell = sheet.GetCell("B1")
Dim cell3 As WorksheetCell = sheet.GetCell("C1")
Dim cell4 As WorksheetCell = sheet.GetCell("D1")

' Create Line chart.
Dim chart1 As WorksheetChart = sheet.Shapes.AddChart(Infragistics.Documents.Excel.Charts.ChartType.Line, cell1, New Point(0, 0), cell1, New Point(100, 100))
chart1.SetSourceData("A2:D4", True)

' Create Column chart.
Dim chart2 As WorksheetChart = sheet.Shapes.AddChart(Infragistics.Documents.Excel.Charts.ChartType.ColumnClustered, cell2, New Point(0, 0), cell2, New Point(100, 100))
chart2.SetSourceData("A2:D4", True)

' Create Area chart.
Dim chart3 As WorksheetChart = sheet.Shapes.AddChart(Infragistics.Documents.Excel.Charts.ChartType.Area, cell3, New Point(0, 0), cell3, New Point(100, 100))
chart3.SetSourceData("A2:D4", True)

' Create Pie chart.
Dim chart4 As WorksheetChart = sheet.Shapes.AddChart(Infragistics.Documents.Excel.Charts.ChartType.Pie, cell4, New Point(0, 0), cell4, New Point(100, 100))
chart4.SetSourceData("A2:D4", False)

Me.Spreadsheet1.Workbook = workbook
