What’s New for WinToolbarsManager

Ribbon Customization

With the release of Office 2010, Microsoft® provides their users the ability to customize the layout of the Ribbon within each Office application. This release of Ultimate UI for Windows Forms 2011 Volume 1 provides the ability for end users to modify WinToolbarsManager™ component’s Ribbon layout, in a similar manner.

New Component – WinRibbonCustomizationProvider™

The customization is achieved with a new component called WinRibbonCustomizationProvider™, which when hooked to WinToolbarsManager provides a new dialog that exposes the customization functionality.

In C#:

using Infragistics.Win.UltraWinToolbars;
this.ultraToolbarsManager1.Ribbon.RibbonCustomizationProvider = this.ultraRibbonCustomizationProvider1;

In Visual Basic:

Imports Infragistics.Win.UltraWinToolbars
Me.ultraToolbarsManager1.Ribbon.RibbonCustomizationProvider = this.ultraRibbonCustomizationProvider1

New Context Menu Items – Customize the Ribbon and Customize Quick Access Toolbar

Two new context menu items – Customize the Ribbon and Customize Quick Access Toolbar is automatically available on the Ribbon as soon as the WinRibbonCustomizationProvider component is hooked up to WinToolbarsManager.

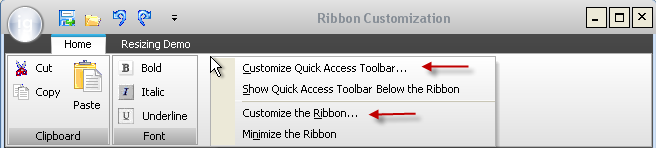

WinToolbarsManager About WinRibbonCustomizationProvider 01.png

Selecting one of these new context menu items displays a new dialog enabling the user to:

  • Perform the following actions on Ribbon Tab, groups, and Tools:

    • Add

    • Remove

    • Show/Hide

    • Rename

    • Reposition

  • Import/Export the layout of the Ribbon.

  • Reset the Ribbon back to its original layout.

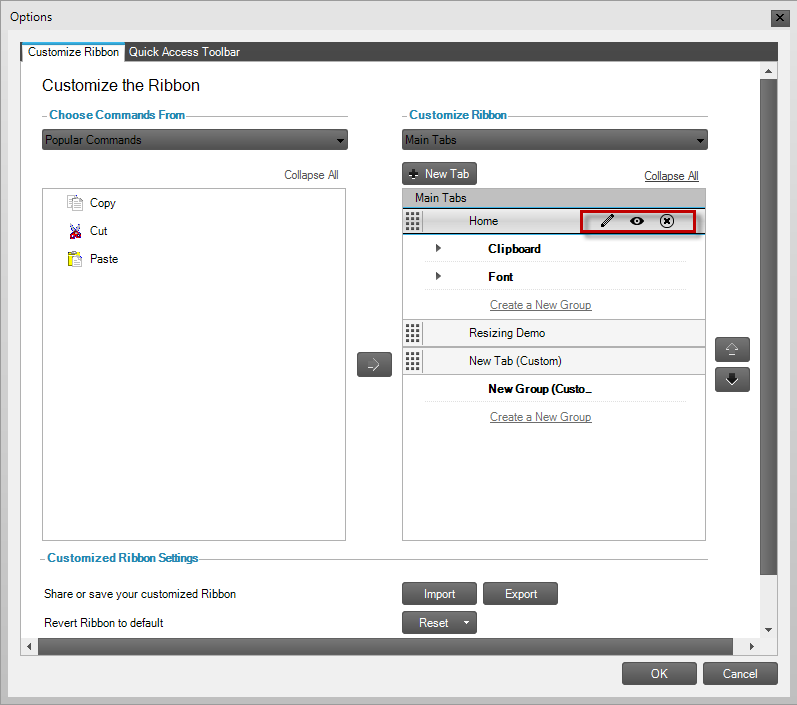

Customization Dialog

WinToolbarsManager Ribbon Customization Dialog 02.png
