Slider
Use the Slider Component to allow the user to select a single value or specify a range of values by choosing values for both its ends. The Slider is visually identical to the Ignite UI for Angular Slider Component

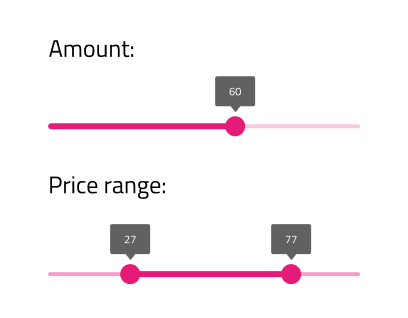

Slider Demo
Type

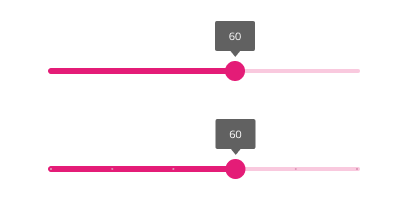

The Slider offers a variant with one thumb for selecting a single value and with two thumbs for specifying a range.
Theme
The Slider can be used styled in dark or light theme to assure good readability and contrast for both lighter and darker backgrounds.

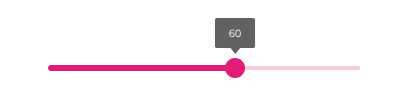

State

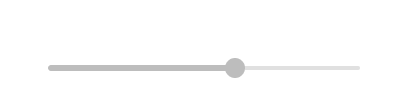

The Slider supports enabled and disabled states, reflecting the possibility to change the value(s).

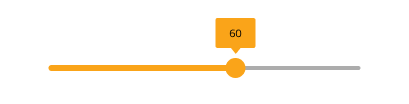

Styling
The Slider comes with styling flexibility through the overrides for the label background, thumb, track, and base track colors.
Usage
The Slider track color should always have a higher emphasis than the track base color. Both single value and range Sliders should be consistently styled i.e. the label background should match the thumb and track color.
| Do | Don't |
|---|---|
 |
 |
 |
 |
Code generation
This section describes some important overrides and how they affect code generation.
Warning
Triggering Detach from Symbol on an instance of the Slider in your design is very likely to result in loss of code generation capability for the Slider.
Data Property
When supplied, the 🕹️DataProperty value is used to set up a two-way data binding using Angular Reactive Forms to the slider value property. The 🕹️DataProperty is optional. The 🕹️DataProperty is the name of the property on the data object specified by the model object name provided during code generation.
For the one-thumb slider, the 🕹️DataProperty must be a number property when supplied.
For the two-thumb slider, the 🕹️DataProperty must be an object or class that has a lower and upper property when supplied.
When a model object name and 🕹️DataProperty are provided, the TypeScript ngOnInit method with be populated with form builder code to create the Reactive Forms form. The 🕹️DataProperty will be used to populate the formControlName property on the slider control.
State
When the State is disabled, or an individual part of the slider is not visible, the control is not rendered.
