Getting Started With Ignite UI for Blazor

This topic provides step-by-step instructions for creating a Blazor Web App with Ignite UI for Blazor using Visual Studio. The differences for standalone Blazor WebAssembly apps and existing Blazor Server apps are listed at the end.

For the MIT-licensed packages, see Getting Started with Open-Source Libraries, and for a Blazor Hybrid app, see Build a Blazor Hybrid App with .NET MAUI.

Create a New Blazor Web App Project

Microsoft’s Blazor tutorial walks through a first Blazor app in Visual Studio Code and links to the same for Visual Studio and the .NET CLI. The steps below use Visual Studio with the ASP.NET and web development workload.

If you want to add Ignite UI for Blazor to an existing application, go to the Install Ignite UI for Blazor section.

Using Visual Studio

Start Visual Studio and click Create a new project on the start page, select the Blazor Web App template, and click Next.

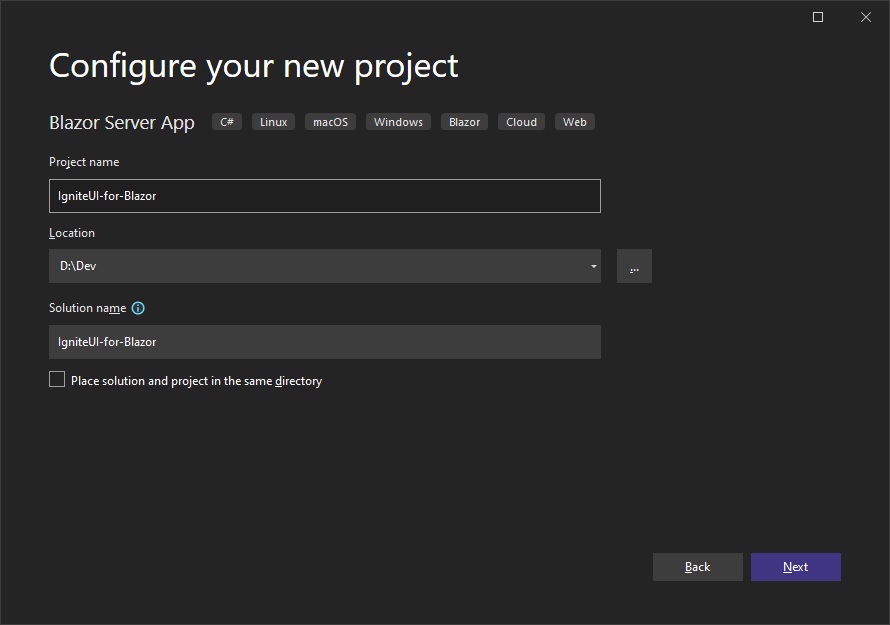

Provide a project name and location, and click Next.

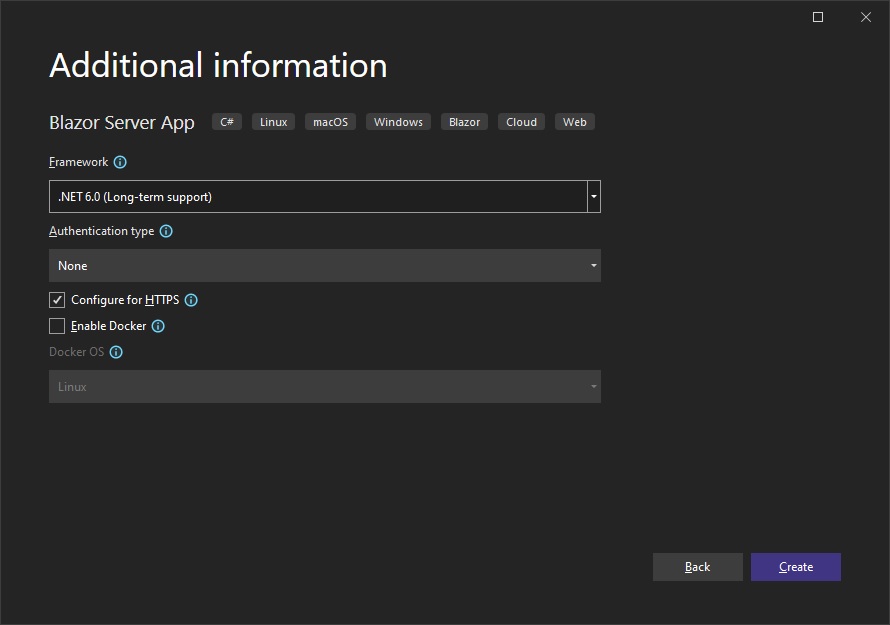

In the Additional information dialog, set:

• Interactive render mode: Server, WebAssembly or Auto. Ignite UI for Blazor components need an interactive render mode, as static server-side rendering is not currently supported.
• Interactivity location: Per page/component (the default) sets the render mode on each page, for example @rendermode InteractiveServer, and Global sets it once in Components/App.razor.

Specify any other project options, and click Create.

Using the .NET CLI

Create the project with the dotnet new blazor command. This example sets the Server render mode globally:

dotnet new blazor -o MyBlazorApp --interactivity Server --all-interactive

Install Ignite UI for Blazor

Ignite UI for Blazor is delivered via NuGet packages. Install IgniteUI.Blazor from the Infragistics NuGet Feed or IgniteUI.Blazor.Trial from NuGet.org.

In a Blazor Web App with the WebAssembly or Auto render mode, installing it in the client project is enough, as the server project gets it through the project reference.

For more information on installing Ignite UI for Blazor using NuGet, read the Installing Ignite UI for Blazor topic.

Register Ignite UI for Blazor

1 - Open the Program.cs file and register the Ignite UI for Blazor Service by calling builder.Services.AddIgniteUIBlazor function. In a Blazor Web App with the WebAssembly or Auto render mode, do this in the Program.cs of both the server and the client project:

builder.Services.AddIgniteUIBlazor();

2 - Add the IgniteUI.Blazor.Controls namespace in the _Imports.razor file (in both projects when there is a client project):

@using IgniteUI.Blazor.Controls

3 - Add the Style Sheet in the <head> element of the Components/App.razor file:

<head>
    <link rel="stylesheet" href="_content/IgniteUI.Blazor/themes/light/bootstrap.css" />
</head>

For .NET 9 or later applications, it is recommended to use the Assets collection property:

<head>
    <link rel="stylesheet" href="@Assets["_content/IgniteUI.Blazor/themes/light/bootstrap.css"]" />
</head>

4 - Add the script reference before the Blazor script in the Components/App.razor file. Reference it directly, not through Assets:

<script src="_content/IgniteUI.Blazor/app.bundle.js"></script>
<script src="@Assets["_framework/blazor.web.js"]"></script>

Component Modules

Calling builder.Services.AddIgniteUIBlazor() is all most apps need: each component loads its client resources the first time it renders. Register modules explicitly to:

• have a component’s resources ready when the app starts, before the component first renders;
• use a component that is created only on the client, for example by a JavaScript template, where no Razor component requests its module;
• enable features that no component requests on its own, such as chart interactivity (IgbDataChartInteractivityModule) or the *FullModule bundles, all in the IgniteUI.Blazor package.

List the modules in AddIgniteUIBlazor, which loads them when the Ignite UI runtime starts:

builder.Services.AddIgniteUIBlazor(
    typeof(IgbBadgeModule),
    typeof(IgbDataChartInteractivityModule)
);

Or register a module later, with the injected runtime:

@inject IIgniteUIBlazor IgniteUIBlazor

@code {
    protected override void OnInitialized()
    {
        IgbBadgeModule.Register(IgniteUIBlazor);
    }
}

Add Ignite UI for Blazor Component

Add an Ignite UI for Blazor component to a razor page that has an interactive render mode. With the WebAssembly or Auto render mode, the page must be in the client project:

<IgbCard style="width:350px">
    <IgbCardMedia>
        <img src="https://images.unsplash.com/photo-1541516160071-4bb0c5af65ba?ixlib=rb-1.2.1&ixid=eyJhcHBfaWQiOjEyMDd9&auto=format&fit=crop&w=350&q=80" />
    </IgbCardMedia>
    <IgbCardHeader>
        <h4>Jane Doe</h4>
        <h6>Professional Photographer</h6>
    </IgbCardHeader>
    <IgbCardContent>Hi! I'm Jane, photographer and filmmaker.
        Photography is a way of feeling, of touching,
        of loving. What you have caught on film is captured forever...
        it remembers little things, long after you have
        forgotten everything.</IgbCardContent>
    <IgbCardActions>
        <IgbButton>More Info</IgbButton>
    </IgbCardActions>
</IgbCard>

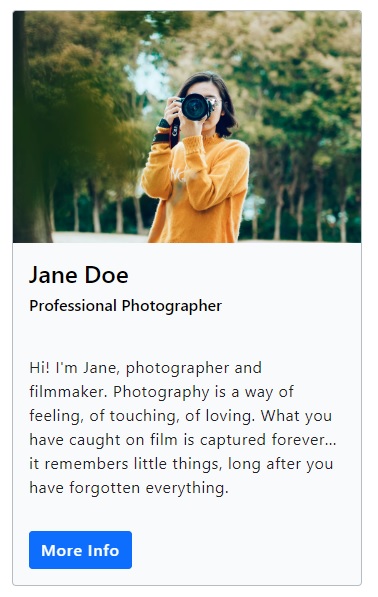

Build and run the Blazor app.

Standalone Blazor WebAssembly Apps

In an app created from the Blazor WebAssembly Standalone App template (dotnet new blazorwasm), every component is interactive, so no render mode is needed. Follow the steps above with these differences:

• Add the style sheet in the <head> element of the wwwroot/index.html file.
• Skip the script reference in step 4.

Existing Blazor Server Apps

Apps created from the Blazor Server App template before .NET 8 are still supported, but Microsoft recommends Blazor Web Apps (see Convert a Blazor Server app into a Blazor Web App). Until you convert, no render mode is needed. Follow the steps above with these differences:

• Add the style sheet in the <head> element of the Pages/_Host.cshtml file (Pages/_Layout.cshtml in .NET 6).
• Skip the script reference in step 4.
