Ignite UI for Web Components Packages Overview

    Ignite UI for Web Components is a complete set of UI widgets, components, UI kits for design tools and supporting services for Web Components. Designed to enable developers to build the most modern, high-performance HTML5 & JavaScript apps for modern desktop browsers, mobile experiences and progressive web apps (PWA’s) targeting the browsers web components APIs.

    Charts & Graphs

    Ignite UI for Web Components Charts & Graphs is a library that lets you visualize any type of data through its 65+ types of series and combinations into stunning and interactive charts and dashboards. Built for speed and beauty, designed to work on every modern browser and with complete touch and interactivity, you can quickly build responsive visuals on any device.

    Gauges

    Ignite UI for Web Components Gauges provides a radial and a linear gauge components used to illustrate data in an easy and intuitive way. The radial gauge has a variety of customization options in order to create a predefined shape and scale. The linear gauge provides a simple view of a value compared against a scale and one or more ranges. It supports one scale, one set of tick marks and one set of labels.

    Ignite UI for Web Components Gauges also includes a IgcBulletGraphComponent component that lets you create data visualizations, replacing meters and gauges that are used on dashboards with simple bar charts.

    Maps

    Ignite UI for Web Components Maps brings the ability to visualize geographic data in your application. It can render data sets consisting of many geographic locations in shapes of markers, lines, polygons, or even interactive bitmaps. It allows you to overlay multiple map layers with geographic data, mark specific geographic locations and display information using custom markers and colors.

    Grids & Inputs

    Ignite UI for Web Components Grid is a grid component that allows you to bind and display data with little configuration. It also provides features such as filtering, sorting, grouping, pinning and more.

    IgniteUI Web Components

    Ignite UI for Web Components is a complete library of UI components, giving you the ability to build modern web applications using encapsulation and the concept of reusable components in a dependency-free approach. See the Storybook Here!

    All components are based on the Indigo.Design Design System, are fully supported by App Builder and are backed by ready-to-use UI kits for Sketch, Adobe XD and Figma.

    Getting Started With Ignite UI for Web Components

    This topic provides step-by-step instructions for creating Web Components application with Ignite UI for Web Components.

    Ignite UI Web Components Example

    The sample below provides an overview on the web components and shows how utilizing them can help you create a well structured app. It represents a sample travel blog that includes an app header with the user's avatar, side navigation and main content area.

    Configuration

    Install IgniteUI CLI

    To create an application from scratch and configure it to use the Ignite UI Web Components you can use the Ignite UI CLI. The first step is to install the respective package globally as follows:

    npm install -g igniteui-cli


    If you want to get a guided experience through the available options, you can initialize the step by step mode that will help you create and setup your new application. To start the guide, simply run the ig command:

    ig


    Then choose Web Components as framework, select Base project template, add a specific component/view or select Complete & Run. Additionally, you can read more about the Ignite UI CLI here.

    Install Polyfills

    Run this command to install the web component polyfills:

    Then import the web component polyfills into index.js:

    import '@webcomponents/custom-elements/custom-elements.min';
    import '@webcomponents/custom-elements/src/native-shim.js';


    Install Ignite UI for Web Components

    In order to use the Ignite UI Web Components in your application you should install the igniteui-webcomponents package:

    npm install igniteui-webcomponents


    Next you will need to import the components that you want to use in your index.ts file. You could import one or more components using the defineComponents function like this:

    import { defineComponents, IgcAvatarComponent, IgcBadgeComponent } from 'igniteui-webcomponents';

    defineComponents(IgcAvatarComponent, IgcBadgeComponent);


    You could also import all of the components using the defineAllComponents function:

    import { defineAllComponents } from 'igniteui-webcomponents';

    defineAllComponents();

    Note

    Importing all of the components will increase the bundle size of your application. That's why we recommend you to import only the components that you are actually using.

    After the components are imported you can use them in your html:

    <igc-avatar initials="AZ"></igc-avatar>
    <igc-badge></igc-badge>


    Install Charts and Map Web Component packages

    Step 1 - Create the Web Component Project

    1 - Open a command line and create a directory named wc-html

    mkdir wc-html


    2 - Change the command line path to the newly created directory

    cd wc-html


    3 - Initialize npm in the directory

    npm init -y


    4 - Install the webpack bundler and the webpack cli as a developer dependency

    npm install webpack webpack-cli --save-dev

    Note

    Webpack is a module bundler. Its main purpose is to bundle JavaScript files for usage in a browser, yet it is also capable of transforming, bundling, or packaging just about any resource or asset.

    5 - Open the project in VS Code

    code .


    6 - Create a new file named index.html with this code:

    <html>
        <head>
            <title>Getting Started with Ignite UI for Web Components</title>
        </head>
        <body>

        </body>
    </html>


    7 - Create a new folder named src, and within that folder create a new file named index.js. Your project structure should look like this:

    8 - Update the package.json file to include a build script using webpack

      "scripts": {
        "build": "webpack ./src/index.js -o ./dist/ --output-filename index.bundle.js"
      },

    Note

    This script will use webpack to bundle the index.js file into another file called index.bundle.js and place it into a folder named dist.

    If a javaScript heap out of memory issue occurs while building you can increase the heap size by using this build command instead:

    "scripts": {
        "build": "node --max_old_space_size=8192 node_modules/webpack/bin/webpack src/index.js -o dist/index.bundle.js"
    },


    Step 2 - Install Polyfills

    1 - Open a terminal in VS Code (View -> Terminal menu or press CTRL + ` keys)

    2 - Type this command to install the web component polyfills:

    npm install @webcomponents/custom-elements


    3 - Import the web component polyfills into index.js

    import '@webcomponents/custom-elements/custom-elements.min';
    import '@webcomponents/custom-elements/src/native-shim.js';


    Step 3 - Install Ignite UI for Web Components and lit-html

    1 - Install the Ignite UI for Web Component using npm. In this example, we will install the Map web component:

    npm install --save igniteui-webcomponents-core
    npm install --save igniteui-webcomponents-charts
    npm install --save igniteui-webcomponents-maps
    npm install lit-html


    2 - Import the Geographic Map modules and ModuleManager in index.js file:

    import { IgcGeographicMapModule } from 'igniteui-webcomponents-maps';
    import { IgcDataChartInteractivityModule } from 'igniteui-webcomponents-charts';
    // module manager for registering the modules
    import { ModuleManager } from 'igniteui-webcomponents-core';


    3 - Register the Geographic Map modules using the ModuleManager

    ModuleManager.register(
        IgcGeographicMapModule,
        IgcDataChartInteractivityModule
    );


    4 - Add the Geographic Map web component to the body of index.html file

    <body>
        <igc-geographic-map id="map" height="500px" width="100%">
        </igc-geographic-map>
    </body>


    Step 4 - Build and Run the Web Component Project

    1 - Open a terminal in VS Code and execute the build script

    npm run build

    Note

    This command will run the build script we created earlier. The build script will generate a file named index.bundle.js in a folder named dist

    2 - Add the index.bundle.js script to the end of body element in index.html file.

    <body>
        <igc-geographic-map id="map" height="500px" width="100%">
        </igc-geographic-map>

        <script src="dist/index.bundle.js"></script>
    </body>


    3 - To run the project, launch a local development server. In this example, we are using Live Server. Right-click within the editor of index.html and select Open with Live Server

    Note

    Live Server is an extension to Visual Studio Code that allows you to launch a local development server with live reload feature for static & dynamic pages. This extension can be installed via the Visual Studio Code Extensions tab, or by downloading it from the Visual Studio Marketplace.

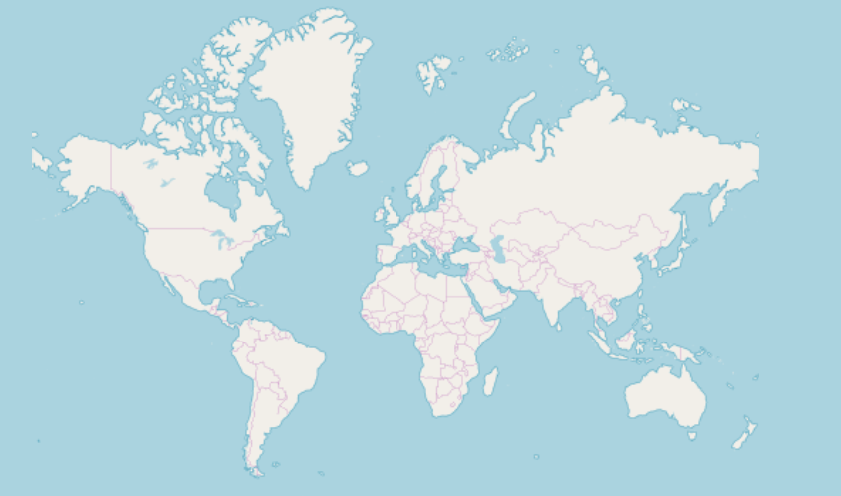

    4 - Navigate to the index.html using a web browser on your local server, and the Ignite UI for Web Components map should now be rendered with shape of the world.
