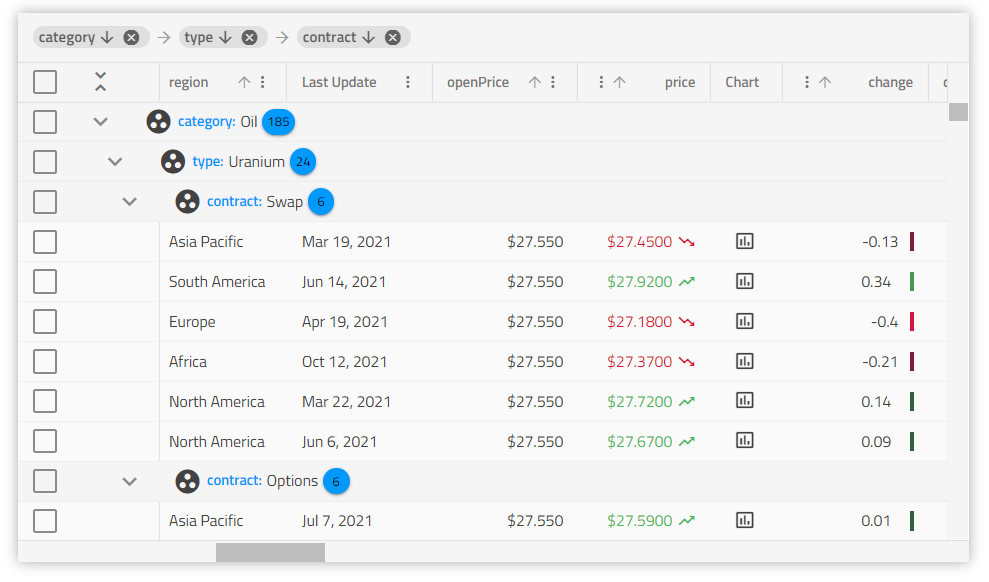

Angular Data Grid Overview and Configuration

    The Ignite UI for Angular Data Grid is used to display and manipulate data with ease. Quickly bind your data with very little code or use a variety of events to customize different behaviors. This component provides a rich set of features like data selection, excel style filtering, sorting, paging, templating and column moving. Displaying tabular data has never been easier and beautiful thanks to the Material Table-based UI Grid.

    Angular Data Grid Example

    Boston Marathon 2021 – In this angular grid example, you can see how users can do both basic and excel-style filtering, live-data sorting, as well as using of grid summaries and cell templating that includes our Sparkline component, Circular Progress Indicator component, and Icons. The demo also includes custom paging and per page usage part of the Angular Pagination.

    Getting Started with Ignite UI for Angular Data Grid

    Dependencies

    Note

    This component requires HammerModule to be imported in the root module of the application in order for touch interactions to work as expected..

    To get started with the Angular data grid, first you need to install Ignite UI for Angular by typing the following command:

    ng add igniteui-angular


    For a complete introduction to the Ignite UI for Angular, read the getting started topic.

    The Angular grid is exported as an NgModule, thus all you need to do in your application is to import the IgxGridModule inside your AppModule:

    // app.module.ts

    import { IgxGridModule } from 'igniteui-angular';

    @NgModule({
        imports: [
            ...
            IgxGridModule,
            ...
        ]
    })
    export class AppModule {}


    Each of the components, directives and helper classes in the IgxGridModule can be imported through the main bundle in igniteui-angular. While you don't need to import all of them to instantiate and use the grid, you usually will import them (or your editor will auto-import them for you) when declaring types that are part of the grid API.

    import { IgxGridComponent } from 'igniteui-angular';
    ...
    @ViewChild('myGrid', { read: IgxGridComponent })
    public grid: IgxGridComponent;


    Usage

    Now that we have the grid module imported, let’s get started with a basic configuration of the igx-grid that binds to local data:

    <igx-grid #grid1 id="grid1" [data]="localData" [autoGenerate]="true"></igx-grid>


    The id property is a string value and is the unique identifier of the grid which will be auto-generated if not provided, while data binds the grid, in this case to local data.

    The autoGenerate property tells the igx-grid to auto generate the grid's IgxColumnComponent based on the data source fields. It will also try to deduce the appropriate data type for the column if possible. Otherwise, the developer needs to explicitly define the columns and the mapping to the data source fields.

    Angular Bootstrap Grid Definition

    Ignite UI for Angular includes a powerful bootstrap grid like flex-based layout system. Any modern application today is expected to follow a responsive web design approach, meaning it can gracefully adjust layout of HTML elements based on the device size, or from simply resizing the browser. An Angular bootstrap grid layout was the most used approach in the past, but a flex-based layout system like CSS grid has become more popular, as it works in any browser. The Ignite UI for Angular Layout Directive allows vertical and horizontal flow, including content / text wrapping, justification, and alignment. The Ignite UI for Angular grid supports a responsive layout using CSS, giving you the ultimate flexibility in how the grid behaves on resize.

    Angular Grid Styling Configuration

    Note

    The IgxGridComponent uses css grid layout, which is not supported in IE without prefixing, consequently it will not render properly.

    In Angular most of the styles are prefixed implicitly thanks to the Autoprefixer plugin.

    For prefixing grid layouts however, you need to enable the Autoprefixer grid property with the comment /* autoprefixer grid:on */.

    To facilitate your work, apply the comment in the src/styles.scss file.

    // src/styles.scss
       @import '~igniteui-angular/lib/core/styles/themes/index';
       @include igx-core();
       @include igx-theme($default-palette);

       /* autoprefixer grid:on */
    ...


    Editable Grid Angular

    Each operation for Angular grid editing includes Batch operations, meaning the API gives you the option to group edits into a single server call, or you can perform grid edit / update operations as they occur with grid interactions. Along with a great developer experience as an editable Angular grid with CRUD operations, the Angular grid includes Excel-like keyboard navigation. Common default grid navigation is included, plus the option to override any navigation option to meet the needs of your customers. An editable grid in Angular with a great navigation scheme is critical to any modern line of business application, with the Ignite UI grid we make it easy.

    Following this topic you will learn more about cell template and cell editing template and editing.

    Angular Grid Column Configuration

    IgxColumnComponent is used to define the grid's columns collection and to enable features per column like sorting and filtering. Cell, header, and footer templates are also available.

    Defining Columns

    Let's turn the autoGenerate property off and define the columns collection in the markup:

    <igx-grid #grid1 [data]="data | async" [autoGenerate]="false" (columnInit)="initColumns($event)"
        (selected)="selectCell($event)" [allowFiltering]="true">
        <igx-column field="Name" [sortable]="true" header=" "></igx-column>
        <igx-column field="AthleteNumber" [sortable]="true" header="Athlete number" [filterable]="false"></igx-column>
        <igx-column field="TrackProgress" header="Track progress" [filterable]="false">
            <ng-template igxCell let-value>
                <igx-linear-bar [stripped]="false" [value]="value" [max]="100"></igx-linear-bar>
            </ng-template>
        </igx-column>
        <igx-paginator [perPage]="6">
        </igx-paginator>
    </igx-grid>


    Each of the columns of the grid can be templated separately. The column expects ng-template Angular grid module directives.

    It also expose additionalTemplateContext input that can be used for custom properties and any type of data context that you want to pass to the column itself:

    <igx-column [additionalTemplateContext]="contextObject">
        <ng-template igxCell let-cell="cell" let-props="additionalTemplateContext">
            {{ props.firstProperty }}
        </ng-template>
    </igx-column>

    public contextObject = { firstProperty: 'testValue', secondProperty: 'testValue1'};


    Header Template

    igxHeader targets the column header providing as a context the column object itself.

    ...
    <igx-column field="Name">
        <ng-template igxHeader let-column>
            {{ column.field | uppercase }}
        </ng-template>
    </igx-column>
    ...

    Note

    Whenever a header template is used along with grouping/moving functionality the column header area becomes draggable and you cannot access the custom elements part of the header template until you mark them as not draggable. Example below.

    <igx-column #col field="ProductName" header="Product Name"
        [groupable]="true" [movable]="true" [hasSummary]="true">
        <ng-template igxHeader let-col>
            <div class="text">{{col.field}}</div>
            <igx-icon (click)="toggleSummary(col)" [attr.draggable]="false">functions
            </igx-icon>
        </ng-template>
    </igx-column>


    As you can see, we are adding draggable attribute set to false.

    Cell Template

    igxCell applies the provided template to all cells in the column. The context object provided in the template consists of the cell value provided implicitly and the cell object itself. It can be used to define a template where the cells can grow according to their content, as in the below example.

    ...
    <igx-column field="Name">
        <ng-template igxCell let-value>
            {{ value | titlecase }}
        </ng-template>
    </igx-column>
    ...


    In the snippet above we "take" a reference to the implicitly provided cell value. This is sufficient if you just want to present some data and maybe apply some custom styling or pipe transforms over the value of the cell. However even more useful is to take the IgxGridCell instance itself as shown below:

    <igx-grid #grid [data]="data">
        <igx-column dataType="string" field="Name">
            <ng-template igxCell let-cell="cell">
                <!-- Implement row deleting inside the cell template itself -->
                <span tabindex="0" (keydown.delete)="grid.deleteRow(cell.row.index)">{{ cell.value | titlecase }}</span>
            </ng-template>
        </igx-column>
        <igx-column dataType="boolean" field="Subscribtion">
            <ng-template igxCell let-cell="cell">
                <!-- Bind the cell value through the ngModel directive and update the data source when the value is changed in the template -->
                <input type="checkbox" [ngModel]="cell.value" (ngModelChange)="cell.update($event)" />
            </ng-template>
        </igx-column>
    <igx-grid>


    When changing data through the cell template using ngModel, you need to call the appropriate API methods to make sure the value is correctly updated in the Angular grid's underlying data collection. In the snippet above, the ngModelChange call passes through the grid's editing API and goes through the grid's editing pipeline, properly triggering transactions(if applicable) and handling of summaries, selection, etc. However, this ngModelChange will fire every time the value of the cell changes, not just when the user is done editing, resulting in a lot more API calls.

    Note

    The grid exposes a default handling for number, string, date and boolean column types. For example, the column will display check or close icon, instead of true/false by default, for boolean column type.

    If the data in a cell is bound with [(ngModel)] and the value change is not handled, the new value will not be properly updated in the Angular grid's underlying data source. When dealing with cell editing with a custom template, it is strongly advised to use the cell's cell editing template.

    When properly implemented, the cell editing template also ensures that the cell's editValue will correctly pass through the grid editing event cycle.

    Cell Editing Template

    The column also accepts one last template that will be used when a cell is in edit mode. As with the other column templates, the provided context object is again the cell value and the cell object itself. Of course in order to make the edit-mode template accessible to end users, you need to set the editable property of the IgxColumnComponent to true.

    <igx-column dataType="number" editable="true" field="Price">
        <ng-template igxCellEditor let-cell="cell">
            <label for="price">
                Enter the new price tag
            </label>
            <input name="price" type="number" [(ngModel)]="cell.editValue" />
        </ng-template>
    </igx-column>


    Make sure to check the API for the IgxGridCell in order to get accustomed with the provided properties you can use in your templates.

    Column Template API

    Each of the column templates can be changed programmatically at any point through the IgxColumnComponent object itself. For example in the code below, we have declared two templates for our user data. In our TypeScript code we'll get references to the templates themselves and then based on some condition we will render the appropriate template for the column in our application.

    <igx-grid>
        <!-- Column declarations -->
    </igx-grid>

    <ng-template #normalView let-value>
        <div class="user-details">{{ val }}</div>
        <user-details-component></user-details-component>
    </ng-template>

    <ng-template #smallView let-value>
        <div class="user-details-small">{{ val }}</div>
    </ng-template>

    @ViewChild("normalView", { read: TemplateRef })
    public normalView: TemplateRef<any>;

    @ViewChild("smallView", { read: TemplateRef })
    public smallView: TemplateRef<any>;

    ....

    const column = this.grid.getColumnByName("User");
    // Return the appropriate template based on some conditiion.
    // For example saved user settings, viewport size, etc.
    column.bodyTemplate = this.smallView;


    Column properties can also be set in code in the columnInit event which is emitted when the columns are initialized in the grid.

    public initColumns(column: IgxGridColumn) {
        const column: IgxColumnComponent = column;
        if (column.field === 'ProductName') {
            column.sortable = true;
            column.editable = true;
        }
    }


    The code above will make the ProductName column sortable and editable and will instantiate the corresponding features UI (like inputs for editing, etc.).

    Custom Display Format

    All values for a date, numeric, currency and percent column are transformed through the Angular DatePipe, DecimalPipe, CurrencyPipe and PercentPipe accordingly. This does not modify the original value, just the value that is displayed in the column. So please keep in mind that all data operations and manipulations are done based on the values in your data source. By default, values will be displayed according to the grid locale (if not specified, it fallbacks to the application locale, which defaults to 'en-US').

    See Setting up the locale of your app for more details.

    Also, there are optional parameters for formatting:

    • format - determines what date/time parts are displayed, defaults to 'mediumDate', equivalent to 'MMM d, y'
    • timezone - the timezone offset for dates. By default uses the end-user's local system timezone
    • digitsInfo - decimal representation objects. Default to '1.0-3'

    To allow customizing the display format by these parameters, the pipeArgs input is exposed. A column will respect only the corresponding properties for its data type, if pipeArgs is set. Example:

    const pipeArgs: IColumnPipeArgs = {
         format: 'longDate',
         timezone: 'UTC',
         digitsInfo: '1.1-2'
    }

    <igx-column field="OrderDate" dataType="date" [pipeArgs]="pipeArgs"></igx-column>
    <igx-column field="UnitPrice" dataType="number" [pipeArgs]="pipeArgs"></igx-column>


    The OrderDate column will respect only the format and timezone properties, while the UnitPrice will only respect the digitsInfo. For further details, please check the official Angular documentation at Localizing your app.

    All available column data types could be found in the official Column types topic.

    Angular Grid Data Structure

    The IgxGridComponent handles flat data and nested POJOs(Plain old Java objects). The data structure specific for rendering is in the form:

    const OBJECT_ARRAY = [{
            ObjectKey1: value1,
            ObjectKey2: value2,
            .
            .
            .
            ObjectKeyN: valueN
        },
        .
        .
        .
      }];

    const POJO = [{
            ObjectKey1: value1,
            ObjectKey2: value2,
            .
            .
            .
            ObjectKeyN: {
              ObjectKeyN1: value1,
              ObjectKeyN2: value2,
              .
              .
              .
              ObjectKeyNM: valueNM,
            }
        },
        .
        .
        .
      }];

    Warning

    The key values must not contain arrays.

    If you use autoGenerate columns the data keys must be identical.

    Angular Grid Data Binding

    Before going any further with the grid we want to change the Angular grid to bind to remote data service, which is the common scenario in large-scale applications. A good practice is to separate all data fetching related logic in a separate data service, so we are going to create a service which will handle the fetching of data from the server.

    Let's implement our service in a separate file

    // northwind.service.ts

    import { Injectable } from '@angular/core';
    import { HttpClient } from '@angular/common/http';
    import { Observable } from 'rxjs/Observable';
    import { of } from 'rxjs/observable/of';
    import { catchError, map } from 'rxjs/operators';


    We're importing the Injectable decorator which is an essential ingredient in every Angular service definition. The HttpClient will provide us with the functionality to communicate with backend services. It returns an Observable of some result to which we will subscribe in our grid component.

    Note: Before Angular 5 the HttpClient was located in @angular/http and was named Http.

    Since we will receive a JSON response containing an array of records, we may as well help ourselves by specifing what kind of data we're expecting to be returned in the observable by defining an interface with the correct shape. Type checking is always recommended and can save you some headaches down the road.

    // northwind.service.ts

    export interface NorthwindRecord {
        ProductID: number;
        ProductName: string;
        SupplierID: number;
        CategoryID: number;
        QuantityPerUnit: string;
        UnitPrice: number;
        UnitsInStock: number;
        UnitsOnOrder: number;
        ReorderLevel: number;
        Discontinued: boolean;
        CategoryName: string;
    }


    The service itself is pretty simple consisting of one method: fetchData that will return an Observable<NorthwindRecord[]>. In cases when the request fails for any reason (server unavailable, network error, etc), the HttpClient will return an error. We'll leverage the catchError operator which intercepts an Observable that failed and passes the error to an error handler. Our error handler will log the error and return a safe value.

    // northwind.service.ts

    @Injectable()
    export class NorthwindService {
        private url = 'http://services.odata.org/V4/Northwind/Northwind.svc/Alphabetical_list_of_products';

        constructor(private http: HttpClient) {}

        public fetchData(): Observable<NorthwindRecord[]> {
            return this.http
                .get(this.url)
                .pipe(
                    map(response => response['value']),
                    catchError(
                        this.errorHandler('Error loading northwind data', [])
                    )
                );
        }

        private errorHandler<T>(message: string, result: T) {
            return (error: any): Observable<any> => {
                console.error(`${message}: ${error.message}`);
                return of(result as T);
            };
        }
    }


    Make sure to import both the HttpClientModule and our service in the application module and register the service as a provider.

    // app.module.ts

    import { HttpClientModule } from '@angular/common/http';
    ...
    import { NorthwindService } from './northwind.service';

    @NgModule({
        imports: [
            ...
            HttpClientModule
            ...
        ],
        providers: [
            NorthwindService
        ]
    })
    export class AppModule {}


    After implementing the service we will inject it in our component's constructor and use it to retrieve the data. The ngOnInit lifecycle hook is a good place to dispatch the initial request.

    Note: In the code below, you may wonder why are we setting the records property to an empty array before subscribing to the service. The Http request is asynchronous, and until it completes, the records property will be undefined which will result in an error when the grid tries to bind to it. You should either initialize it with a default value or use a BehaviorSubject.

    // my.component.ts

    @Component({
        ...
    })
    export class MyComponent implements OnInit {

        public records: NorthwindRecord[];

        constructor(private northwindService: NorthwindService) {}

        ngOnInit() {
            this.records = [];
            this.northwindService.fetchData().subscribe((records) => this.records = records);
        }
    }


    and in the template of the component:

        <igx-grid [data]="records">
            <igx-column field="ProductId"></igx-column>
            <!-- rest of the column definitions -->
            ...
        </igx-grid>


    Note: The grid autoGenerate property is best to be avoided when binding to remote data for now. It assumes that the data is available in order to inspect it and generate the appropriate columns. This is usually not the case until the remote service responds, and the grid will throw an error. Making autoGenerate available, when binding to remote service, is on our roadmap for future versions.

    Complex Data Binding

    The IgxGridComponent supports binding to complex objects (inluding nesting deeper than one level) through a "path" of properties in the data record.

    Take a look at the following data model:

    interface AminoAcid {
        name: string;
        abbreviation: {
            short: string;
            long: string;
        }
        weight: {
            molecular: number;
            residue: number;
        },
        formula: {
            molecular: string;
            residue: string;
        }
        ...
    }


    For example, in order to display the weights of a given amino acid in the grid the following snippet will suffice

    <igx-column field="weight.molecular"></igx-column>
    <igx-column field="weight.residue"></igx-column>


    Refer to the sample below for additional information. This type of binding supports all the default functionality that you would expect from the grid. That is all sorting and filtering operations work out of the box without any additional configuration. Same goes for grouping and editing operations with or without transactions as well as the ability to template the cells of the bound column.

    Warning

    The grids do not support this kind of binding for primary key, foreign key and child key properties where applicable.

    An alternative way to bind complex data, or to visualize composite data (from more than one column) in the IgxGrid is to use a custom body template for the column. Generally, one can:

    • use the value of the cell, that contains the nested data
    • use the cell object in the template, from which to access the rowData, therefore retrieve any value from it, i.e cell.rowData[field]

    and interpolate it those in the template.

    Below is the data that we are going to use:

    export const EMPLOYEE_DATA = [
        {
            Age: 55,
            Employees: [
                {
                    Age: 43,
                    HireDate: new Date(2011, 6, 3),
                    ID: 3,
                    Name: "Michael Burke",
                    Title: "Senior Software Developer"
                },
                {
                    Age: 29,
                    HireDate: new Date(2009, 6, 19),
                    ID: 2,
                    Name: "Thomas Anderson",
                    Title: "Senior Software Developer"
                },
                {
                    Age: 31,
                    HireDate: new Date(2014, 8, 18),
                    ID: 11,
                    Name: "Monica Reyes",
                    Title: "Software Development Team Lead"
                },
                {
                    Age: 35,
                    HireDate: new Date(2015, 9, 17),
                    ID: 6,
                    Name: "Roland Mendel",
                    Title: "Senior Software Developer"
                }],
            HireDate: new Date(2008, 3, 20),
            ID: 1,
            Name: "John Winchester",
            Title: "Development Manager"
        },
    ...


    The custom template for the column, that will render the nested data:

    ...
     <igx-column field="Employees" header="Employees" [cellClasses]="{ expand: true }" width="40%">
            <ng-template #nestedDataTemp igxCell let-people let-cell="cell">
                <div class="employees-container">
                    <igx-expansion-panel *ngFor="let person of people">
                        <igx-expansion-panel-header iconPosition="right">
                            <igx-expansion-panel-description>
                                {{ person.Name }}
                            </igx-expansion-panel-description>
                        </igx-expansion-panel-header>
                        <igx-expansion-panel-body>
                            <div class="description">
                                <igx-input-group (keydown)="stop($event)" displayDensity="compact">
                                    <label igxLabel for="title">Title</label>
                                    <input type="text" name="title" igxInput [(ngModel)]="person.Title" style="text-overflow: ellipsis;" />
                                </igx-input-group>
                                <igx-input-group (keydown)="stop($event)" displayDensity="compact" style="width: 15%;">
                                    <label igxLabel for="age">Age</label>
                                    <input type="number" name="age" igxInput [(ngModel)]="person.Age" />
                                </igx-input-group>
                            </div>
                        </igx-expansion-panel-body>
                    </igx-expansion-panel>
                </div>
            </ng-template>
     </igx-column>
    ...


    And the result from this configuration is:

    Working with Flat data

    The flat data binding approach is similar to the one that we already described above, but instead of cell value we are going to use the rowData property of the IgxRowDirective.

    Since the Angular grid is a component for rendering, manipulating and preserving data records, having access to every data record gives you the opportunity to customize the approach of handling it. The rowData property provides you this opportunity.

    Below is the data that we are going to use:

    export const DATA: any[] = [
        {
            Address: "Obere Str. 57",
            City: "Berlin",
            CompanyName: "Alfreds Futterkiste",
            ContactName: "Maria Anders",
            ContactTitle: "Sales Representative",
            Country: "Germany",
            Fax: "030-0076545",
            ID: "ALFKI",
            Phone: "030-0074321",
            PostalCode: "12209",
            Region: null
        },
    ...


    The custom template:

    ...
    <igx-column field="Address" header="Address" width="25%" editable="true">
                    <ng-template #compositeTemp igxCell let-cell="cell">
                        <div class="address-container">
                        // In the Address column combine the Country, City and PostCode values of the corresponding data record
                            <span><strong>Country:</strong> {{cell.row.data.Country}}</span>
                            <br/>
                            <span><strong>City:</strong> {{cell.row.data.City}}</span>
                            <br/>
                            <span><strong>Postal Code:</strong> {{cell.row.data.PostalCode}}</span>
                        </div>
                    </ng-template>
    ...


    Keep in mind that with the above defined template you will not be able to make editing operations, so we need an editor template.

    ...
                     <ng-template  igxCellEditor let-cell="cell">
                            <div class="address-container">
                            <span>
                                <strong>Country:</strong> {{cell.row.data.Country}}
                                <igx-input-group width="100%">
                                        <input igxInput [(ngModel)]="cell.row.data.Country" />
                                </igx-input-group>
                            </span>
                                <br/>
                                <span><strong>City:</strong> {{cell.row.data.City}}</span>
                                <igx-input-group width="100%">
                                        <input igxInput [(ngModel)]="cell.row.data.City" />
                                </igx-input-group>
                                <br/>
                                <span><strong>Postal Code:</strong> {{cell.row.data.PostalCode}}</span>
                                <igx-input-group width="100%">
                                        <input igxInput [(ngModel)]="cell.row.data.PostalCode" />
                                </igx-input-group>
                                <br/>
                            </div>
                    </ng-template>
    </igx-column>
    ...


    And the result is:

    Keyboard Navigation

    Grid's keyboard navigation provides a rich variety of keyboard interactions for the user. It enhances accessibility and allows intuitive navigation through any type of elements inside (cell, row, column header, toolbar, footer, etc.). Check out these resources for more information:

    State Persistence

    Achieving a state persistence framework is easier than ever by using the new built-in IgxGridState directive.

    Sizing

    See the Grid Sizing topic.

    Known Limitations

    Limitation Description
    Column widths set in percentage and px Currently we do not support mixing of column widths with % and px.
    When trying to filter a column of type number If a value different than number is entered into the filtering input, NaN is returned due to an incorrect cast.
    Grid width does not depend on the column widths The width of all columns does not determine the spanning of the grid itself. It is determined by the parent container dimensions or the defined grid's width.
    Grid nested in parent container When grid's width is not set and it is placed in a parent container with defined dimensions, the grid spans to this container.
    Grid OnPush ChangeDetectionStrategy The grid operates with ChangeDetectionStrategy.OnPush so whenever some customization appears make sure that the grid is notified about the changes that happens.
    Columns have a minimum allowed column width. Depending on the displayDensity option, they are as follows:
    "compact": 56px
    "cosy": 64px
    "comfortable ": 80px
    If width less than the minimum allowed is set it will not affect the rendered elements. They will render with the minimum allowed width for the corresponding displayDensity. This may lead to an unexpected behavior with horizontal virtualization and is therefore not supported.
    Row height is not affected by the height of cells that are not currently rendered in view. Because of virtualization a column with a custom template (that changes the cell height) that is not in the view will not affect the row height. The row height will be affected only while the related column is scrolled in the view.
    Note

    igxGrid uses igxForOf directive internally hence all igxForOf limitations are valid for igxGrid. For more details see igxForOf Known Issues section.

    API References

    Theming Dependencies

    Additional Resources

    Our community is active and always welcoming to new ideas.
